Knifeless 'cutting' tape (green) is applied next to the black tape

Copyright © 2021: www.powell-livery.de All rights reserved.      IMPRESSUM    DATENSCHUTZ

Designproposal

One of several design proposals presented to the client

Design proposal in 4 views: 01.

Designbeklebung
BeimWrappen2
Wrap1
wrapM2
wrap3

FINISH

Sponsors logos and other small details are now applied. Various sizes are prepared as layouts to access the size on the car then stickers are plotted and applied to the car.

.


logo0
Logo1
Track

TRACK DAYS & STREET

.


Street
BMWWorld
sideview

BMW M2 Track Day Car

PROJECT START. DESIGN

Our client requested a classic interpretation of the BMW M Colors for his Blue M2 Competition. He wanted the car to stand out at track days but not appear white washed with a graffiti style livery as is so often seen today and which quickly goes out of style.
Following a client briefing work began on the basic ideas.
First concepts are realised using simple sketches then move on to Photo realistic illustrations. These start with top and side views and then - for the final presentation - front and rear views are added.

PROJEKT START. DESIGN

Der Kunde wünschte sich eine klassische Interpretation der BMW M Farben für seinen blauen M2 Competition. Er wollte, dass das Auto auf der Rennstrecke auffällt, aber nicht mit einer Graffiti-Lackierung, wie man sie heute so oft sieht und die schnell aus der Mode kommt.

Nach einem Kundenbriefing beginnt die Arbeit an den Grundideen.

Erste Konzepte werden mit einfachen Skizzen umgesetzt, um dann zu fotorealistischen Illustrationen überzugehen. Diese beginnen mit Drauf- und Seitenansichten und werden dann - für die endgültige Präsentation - um Front- und Rückansichten ergänzt.


























Overviewpage07

DESIGN APPLICATION

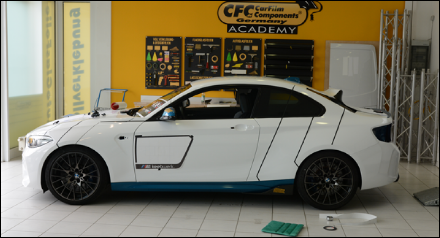

Using one of our wrapping partners. In this case CFC, a company to the South of Munich. The blue M2 was first wrapped white - using the Avery Denison films which is considered to be one of the best - then the design was applied to the car.

With this type of design it is impossible to pre-print the colours and simply wrap the car. The design requires complete control over every line and is carried out as if the car would be painted in a classical way.

First the design lines are roughed in using 'designer' black tapes - these tapes are actually used during the design process on clay models in styling studios world wide - to access the proportions. Once they are correct they are finalised, adding radii, for the wrapper to take over and begin appyling the colours.

DESIGN-APPLIKATION

Mit einem meiner Wrapping-Partner. In diesem Fall CFC, ein Unternehmen im Süden von München. Der blaue M2 wurde zunächst weiß foliert - mit den Avery Denison Folien, die als eine der besten gelten - dann wurde das Design auf das Auto aufgebracht.

Bei dieser Art von Design ist es unmöglich, die Farben vorzudrucken und einfach zu bekleben. Das Design erfordert die vollständige Kontrolle über jede Linie und wird so ausgeführt, als würde das Auto lackiert werden.

Zunächst werden die Designlinien mit schwarzen Designerbändern vorgezeichnet - diese Bänder werden während des Designprozesses an Tonmodellen in Stylingstudios weltweit verwendet - um die Proportionen zu ermitteln. Sobald die Proportionen stimmen, werden die Linien durch Hinzufügen von Radien fertiggestellt, damit der Wrapper sie übernehmen und mit dem Auftragen der folien beginnen kann.


























WRAPPING

knifeless tape - a highly flexible tape with a cutting filament inside - will be used extensively during this process. The Avery Denison film is applied to the car and the individual colours first overlap the knifeless tape - which has been applied next to the black tape - then the cutting filament is pulled out and cuts the folio perfectly!. Complete design control is the result.

WRAPPEN
knifeless tape - ein hochflexibles Klebeband mit einem Schneidefilament im Inneren - wird bei diesem Prozess ausgiebig verwendet. Die Avery Denison-Folie wird auf das Auto geklebt und die einzelnen Farben überlappen zunächst das knifeless tape - das neben dem schwarzen Band angebracht wurde - dann wird das Schneidefilament herausgezogen und schneidet die Folie perfekt! Vollständige Designkontrolle ist das Ergebnis.
